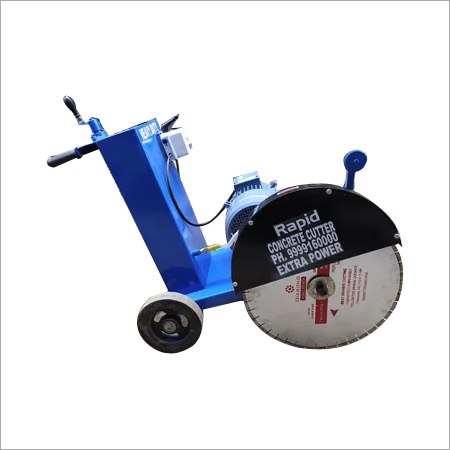

Concrete Cutting Machine

Name: Concrete Cutting Machine
Brand: A ONE INDUSTRIES
Price: 45000.00 INR
Availability: InStock

Price 45000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Concrete Cutting Machine Specification

Drive Motor
Electric/Diesel

Product Type
Concrete Cutting Machine

General Use
Cutting Concrete, Asphalt, Pavement Joints

Material
Mild Steel, Heavy Duty Frame

Type
Floor Cutting Machine

Capacity
Up to 200 m/day

Weight (kg)
180 kg

Computerized
No

Automatic
No (Manual Operation)

Cutting Speed
1-2 m/min

Cutting Thickness
Up to 180 mm

Cutting Function
Concrete and Asphalt Road Cutting

Cooling System
Water Cooling (Manual Feed)

Drive Type
Belt Drive

Voltage
220-380 V

Dimension (L*W*H)
1200 mm x 600 mm x 950 mm

Feature
Durable Build, Easy Mobility, Vibration Resistant

Color
Yellow/Black

Motor
7.5 HP Electric or 10 HP Diesel Engine

Mechanical Precision
2 mm

Software Detail
Not Required (Manual Operation)

Cutting Method
Rotary Blade

Control System
Manual

Cutting Area
400 mm x 400 mm

Cutting Material
Concrete, Asphalt, Bitumen

Concrete Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

About Concrete Cutting Machine

Concrete Cutting Machine is a power tool which is used to abrasively cut the hard substances such as tiles, bricks, concrete floors, asphalt, and other objects made up of hard substances. It is installed with a large diesel combustion engine with a good efficiency and low fuel consumption which reduces the operating. The power generated from the engine rotates the large sized cutting wheel which is provided with a protective guard to protect the operator from the chips produced during the process. Concrete Cutting Machine availed by us is fabricated with a top quality materials which imparts strength to the structural frame. The belt driven transmission reduces the noise and the wearing of the component as there is no metal to metal contact.

Efficient Manual Floor Cutting Solution

This floor cutting machine is designed for versatility and efficiency, catering to construction professionals needing precise cuts in concrete, asphalt, and bitumen. With its manual screw lever depth adjustment and belt drive mechanism, it achieves clean, accurate cuts up to 180 mm deep. Its built-in water tank provides manual water cooling, reducing dust and prolonging blade life, while the emergency stop and blade guard enhance operator safety.

Built for Durability and Easy Mobility

Constructed from a heavy-duty, powder-coated steel frame and mounted on four robust rubber wheels, this cutter ensures stability and smooth transportation across job sites. The integrated lifting hook, ergonomic adjustable handles, and vibration-dampening design reduce operator fatigue, while its compact dimensions allow for easy handling, storage, and mobility.

Adaptable Power and Low Maintenance

Available with either a 7.5 HP electric or 10 HP diesel engine, this machine suits a variety of site requirements. Operating between 12 meters per minute and cutting up to 200 meters per day, it offers high productivity with minimal maintenance. Its reliable manual operation minimizes the need for complicated software or computerized controls, making it simple and quick to use in diverse Indian environments.

FAQs of Concrete Cutting Machine:

Q: How do I mount and change the blade securely on this concrete cutting machine?

A: The machine features a quick-release flange system, allowing you to mount or change the rotary blade easily and safely. Always ensure the safety guard is in place during blade installation, and use the provided manual to follow each step for secure fitting before operation.

Q: What materials can this floor cutting machine handle, and what is the maximum cutting depth?

A: This floor cutting machine is suitable for cutting concrete, asphalt, bitumen, and pavement joints. It can achieve a maximum cutting depth of up to 180 mm, with a minimum cutting width of 3 mm, making it ideal for roadwork and construction projects.

Q: When should I use the water cooling system, and how does the manual feed work?

A: The water cooling system, with a 30-liter onboard tank, should be used whenever you are cutting to minimize dust and cool the blade. Simply use the manual feed to direct water to the cutting area, which helps prolong blade life and ensures safer, cleaner cuts.

Q: Where can this machine be effectively operated, considering temperature and transport needs?

A: Designed to function in ambient temperatures ranging from -5C to 50C, this cutting machine is suitable for varied Indian climates. Transportation is made easy with its heavy-duty wheels and an integrated lifting hook, making relocation around or between job sites safe and efficient.

Q: What safety features does this concrete cutting machine offer during operation?

A: Safety features include a solid blade guard to prevent accidental contact with the blade, an emergency stop function for immediate shutdown, vibration-dampening design to reduce fatigue, and a powder-coated surface for extra durability and corrosion resistance.

Q: How does the adjustable ergonomic handle benefit the operator?

A: The adjustable and ergonomically designed handle ensures comfortable grip and posture during prolonged use. This reduces operator fatigue and enables better control, especially when maneuvering the machine over uneven surfaces or during extended cutting sessions.

Q: What are the key benefits of choosing this manual concrete cutting machine for my projects?

A: Key benefits include precise and clean cuts, low maintenance due to manual operation, high mobility on heavy-duty wheels, reliable safety features, long-lasting construction, and the flexibility of electric or diesel drive options. Its robust engineering supports intensive daily use and productive job site performance.
